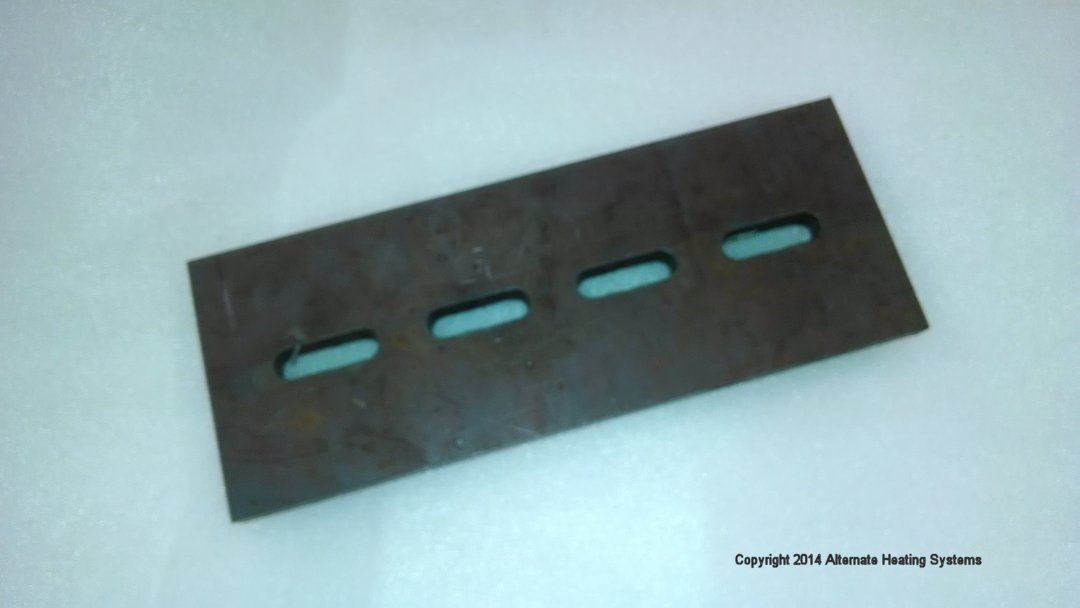

423-050A STEEL CENTER BRICK 16 IN
This item is a steel replacement for [413-021]. Steel Center Brick are normally used when Side Brick ledge erosion is severe, and there is little of the ledge left to support Standard Center Brick. This (and other) steel Center Brick are supported by the top surface of the Side Brick, instead of the ledges. This item is used in the following quantities in the Wood Gun.
- E100/E155 – Qty 1 (in addition to Qty 1 of [423-051])
- E140 – Qty 2
- E180 – Qty 2
- E200 – Qty 2 (in addition to Qty 1 of [423-052])
- E250 – Qty 3
- Please Note: We recommend using the Cap Center Brick [433-060] for this application.
Category
Center Brick, Parts & Options, Refractory, Wood Gun Parts
Shipping Weight
25lbs
